Ocular
IQ Solar
Solar-smartMulti-userOCPP 1.6
A well-regarded home charger with solar charging, multi-user support and a built-in display.
7 kWmax power
2 yrwarranty
IP54enclosure
Solarcharging
Supplied and installed by our CEC-accredited team across Queensland.
What makes it different.

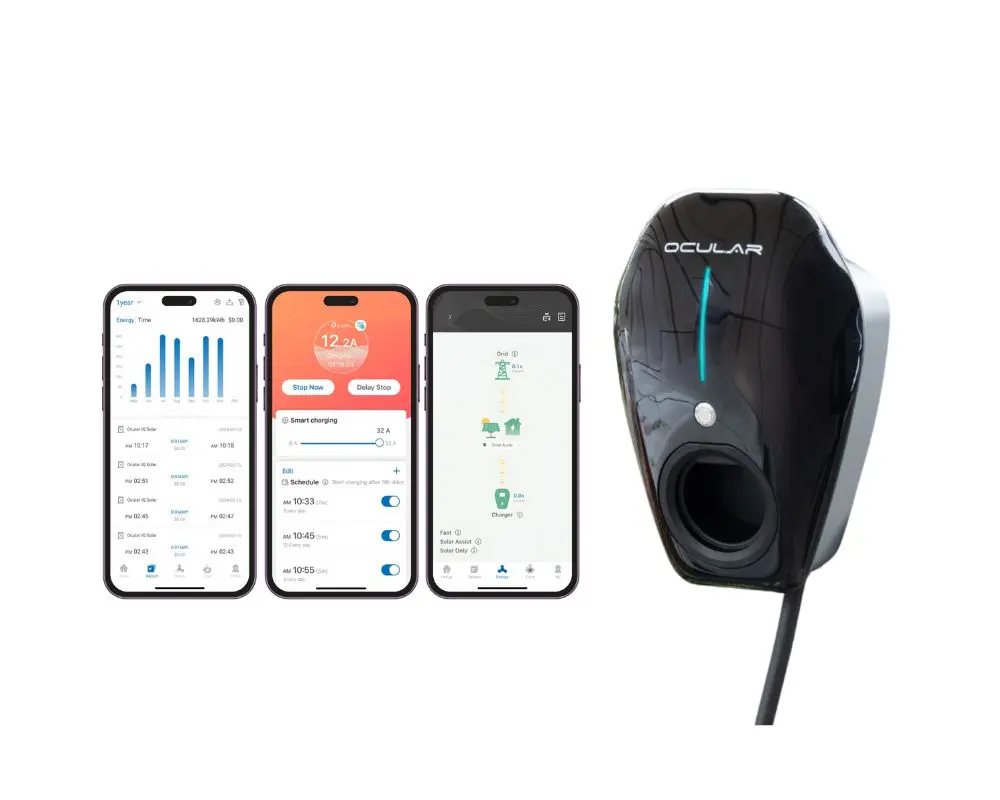

Ocular IQ Home Solar is an Australian-designed home charger with solar-aware charging, load management, multi-user support and a built-in display. It has three modes: Fast, Solar Assist and Solar Only.
How it works, simply: a smart charger measures what your solar is producing and what your home is using, then adjusts the car's charging current so it soaks up surplus solar rather than exporting it.
It suits households with more than one driver that want a locally supported solar-smart charger, in 7 kW single-phase or 22 kW three-phase versions.

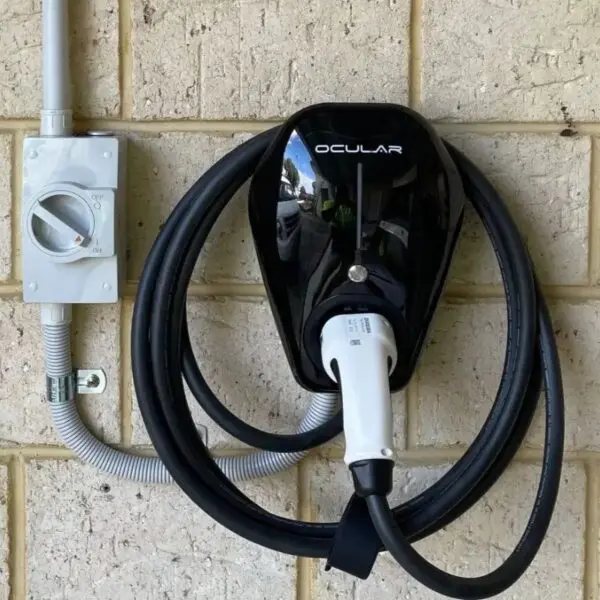

For Queensland conditions: the manufacturer specifies an operating range of -30 ºC to 50 ºC, and its enclosure rating is IP 54. In hot climates many systems reduce output at the top of their range, so we install out of direct afternoon sun with clearance for airflow wherever possible.
Why we install it.
Three modes
Fast, Solar Assist and Solar Only.
Multi-user
Separate users and RFID.
Load management
Protects your main supply.
Local support
An Australian brand.
The full spec sheet.
Charging
| Variants | IOCAH10R-7S / IOCAH10R-7T IOCAH10R-22S / IOCAH10R-22T |
|---|---|
| Phase | Single-phase |
| Rated power | 7 kW |
| Rated current | 32 A |
| Charging modes | Unknown - manufacturer unresponsive |
| Solar Smart Charging | Yes |
| 3 to 1 phase smart switching | No |
| Bi-directional | No |
Connectivity
| Internet connection | Yes |
|---|---|
| App control | Yes |
| OCPP1.6 compatible | Yes |
| Multi-user support | Yes |
| PIN/physical lock | Yes |
| Display | Yes |
Installation
| Enclosure dimensions | 269 x 360 x 146 mm |
|---|---|
| Weight | 7.6 kg |
| Charge cable length | 5 meters |
| IP rating | IP 54 |
| Operating temperature | -30 ºC to 50 ºC |
| Standby power consumption | Unknown - manufacturer unresponsive |
| Country of manufacture | China |
Warranty
| Warranty | 2 years |
|---|
Build the complete system.
Products from other categories that work well alongside the IQ Solar.
What warranty does the Ocular IQ Solar have?
The manufacturer warranty is 2 years. Terms may require product registration. We register it for you.
Can the IQ Solar be installed outside?
The manufacturer lists IP 54. In Queensland we still avoid direct afternoon sun where possible, because heat can reduce performance, and we'll recommend the best spot during the site visit.
How fast will it charge my car?
Charge speed is limited by the charger, your supply (single- or three-phase) and your car's onboard charger, whichever is lowest. We'll check all three.
Other EV chargers we install.
Let's talk IQ Solar.
Tell us about your property and we'll quote the Ocular IQ Solar as part of a system designed for your home.
0402 180 144 · [Email]
Request a quote
Specifications are indicative, based on manufacturer datasheets and SolarQuotes comparison data (2026), and vary by model and size. Images are official manufacturer images. Final product selection depends on your site assessment, network rules and availability. Brand availability to be confirmed by Countryside Solar. Sources: solarquotes.com.au (page), solarquotes.com.au (datasheet), ocularcharging.com.au (page).
